How to Debug Non-Deterministic Test Failures with RSpec

I recently wrote a spec for metric_fu which accidentally introduced a non-deterministic spec (a flaky spec!). I had no idea why it was randomly failing. This is an article to explain the process I followed to debug this issue.

The test that I wrote was testing the integration between metric_fu and reek. When I started I wasn't familiar with neither of those projects' codebases, so bear with me.

This is the code that randomly worked/failed:

context "with real output, not mocked nor doubled" do
  let(:result) do
    {
      file_path: "spec/support/samples/alfa.rb",
      code_smells: [
        {
          lines: [1],
          message: "has unused parameter 'echo'",
          method: "bravo",
          type: "UnusedParameters"
        }
      ]
    }
  end

  before do
    @generator = MetricFu::ReekGenerator.new(dirs_to_reek: ["spec/support/samples"])
    @generator.emit
  end

  it "returns real data" do
    @matches = @generator.analyze

    expect(@matches.first).to eq(result)
  end
end

Source: https://github.com/fastruby/metric_fu/blob/reek-dep/spec/metric_fu/metrics/reek/generator_spec.rb#L162-L187

Why did I write that spec? I'm glad you asked.

After bumping the dependency for reek I noticed that generator_spec.rb was working just fine, which was a little suspicious. This lead me to believe that there was no real "integration spec" for a very simple scenario.

If you don't have a CI failure to refer to, a quick and basic way to test a flaky spec is by using this bash line:

while bundle exec rspec spec; do :; done

That line will run bundle exec rspec spec until RSpec fails and returns a non-zero exit code.

Failures:
355
356  1) MetricFu::ReekGenerator analyze method with real output, not mocked nor doubled returns real data
357     Failure/Error: expect(@matches.first).to eq(result)
358
359       expected: {:code_smells=>[{:lines=>[2, 3, 4], :message=>"takes parameters ['echo', 'foxtrot', 'golf'] to 3 meth...f'", :method=>"Alfa#delta", :type=>"UnusedParameters"}], :file_path=>"spec/support/samples/alfa.rb"}
360            got: nil
361
362       (compared using ==)
363     # ./spec/metric_fu/metrics/reek/generator_spec.rb:174:in `block (4 levels) in <top (required)>'
364     # ./spec/support/timeout.rb:6:in `block in <top (required)>'

Sometimes the result returned by reek is an empty result set!

Non-deterministic results have always been hard to debug for me. Fortunately metric_fu is using RSpec and it had the right setup for me to start digging into it.

This is what its RSpec's configuration looks like:

RSpec.configure do |config|
  config.filter_run focus: true
  config.run_all_when_everything_filtered = true
  # Skip specs tagged `:slow` unless SLOW_SPECS is set
  config.filter_run_excluding :slow unless ENV["SLOW_SPECS"]
  # End specs on first failure if FAIL_FAST is set
  config.fail_fast = ENV.include?("FAIL_FAST")
  config.order = :rand
  # ...

The important part there is the line where it randomizes the execution of test scenarios. If you don't do this in your specs, you are at risk. The risk is that your scenarios will only run in a very specifically defined order.

The problem with this is that some scenarios might be leaking state into another scenario without you knowing it. This is a ticking time bomb. In the near future you might write a scenario which alters the execution order and starts causing random looking problems.

I strongly recommend you always run your RSpec tests in random order.

Moving on, when you specify random ordering in your RSpec configuration, its output will show the seed number at the end. For example:

...
Failed examples:

rspec ./spec/metric_fu/metrics/reek/generator_spec.rb:181 # MetricFu::ReekGenerator analyze method with real output, not mocked nor doubled returns real data

Randomized with seed 39100

Then you can use that seed number to replicate the execution order that RSpec used to run each test scenario:

rspec spec --seed 39100

If you combine that with byebug (or pry!), you can start debugging the flakiness with the right state.

[180, 189] in /fastruby/metric_fu/spec/metric_fu/metrics/reek/generator_spec.rb
   180:
   181:       it "returns real data" do
   182:         @matches = @generator.analyze
   183:
   184:         byebug
=> 185:         expect(@matches.first).to eq(result)
   186:       end
   187:     end
   188:
   189:     context "without reek warnings" do
(byebug) dirs_to_reek = @generator.options[:dirs_to_reek]
["spec/support/samples"]
(byebug) Dir[File.join(dir, "**", "*.rb")]
[]
(byebug) dir
"spec/support/samples"
(byebug) Dir.pwd
"/Users/etagwerker/Projects/fastruby/metric_fu/spec/dummy"

At this point, RSpec executed all my test scenarios in a particular order that will cause that flaky spec to fail. That is good news! (Reproducing a flaky spec is always great!)

As you can see, there is something fishy going on. I added my support file to spec/support but RSpec's working directory is path/to/metric_fu/spec/dummy. The weird part is that sometimes Dir.pwd is path/to/metric_fu and other times it's path/to/metric_fu/spec/dummy.

Within the configuration file (spec/spec_helper.rb) I find these lines:

def run_dir
  File.expand_path("dummy", File.dirname(__FILE__))
end

config.before(:suite) do
  MetricFu.run_dir = run_dir
end

My working hypothesis now is that run_dir sometimes is one thing and other times it is another, depending on the load order of RSpec's test scenarios. I find that MetricFu already defines a namespaced method called run_dir:

module MetricFu
  # ...

  def run_dir
    @run_dir ||= Dir.pwd
  end

So now my solution hypothesis is that changing the method name might fix the flakiness. I go ahead and change the method name in spec_helper.rb:

  def dummy_dir
    File.expand_path("dummy", File.dirname(__FILE__))
  end

  config.before(:suite) do
    MetricFu.run_dir = dummy_dir
  end

I run my test suite:

rspec spec --seed 39100

Unfortunately that did not solve the problem. The flakiness remained:

Failures:
355
356  1) MetricFu::ReekGenerator analyze method with real output, not mocked nor doubled returns real data
357     Failure/Error: expect(@matches.first).to eq(result)
358
359       expected: {:code_smells=>[{:lines=>[2, 3, 4], :message=>"takes parameters ['echo', 'foxtrot', 'golf'] to 3 meth...f'", :method=>"Alfa#delta", :type=>"UnusedParameters"}], :file_path=>"spec/support/samples/alfa.rb"}
360            got: nil
361
362       (compared using ==)
363     # ./spec/metric_fu/metrics/reek/generator_spec.rb:174:in `block (4 levels) in <top (required)>'
364     # ./spec/support/timeout.rb:6:in `block in <top (required)>'

I check once again and Dir.pwd is sometimes one thing and other times another.

So, as usual, flakiness seems to be related to "leaky state". After some digging I'm 80% sure that leaky state is coming from MetricFu.run_dir.

Any sort of modification to that "global" variable in one scenario will leak into other scenarios if you are not careful.

So I decide to address this problem in two different ways:

  • Provide a native way to run MetricFu within a directory
  • Stop switching directories between scenarios

MetricFu.with_run_dir

I add this utility method:

module MetricFu
  def with_run_dir(dir, &block)
    old_dir = run_dir
    self.run_dir = dir

    block.call

    self.run_dir = old_dir
  end

This allows me to run MetricFu report generation code within a specific directory and not leak state.

Stop Switching Directories

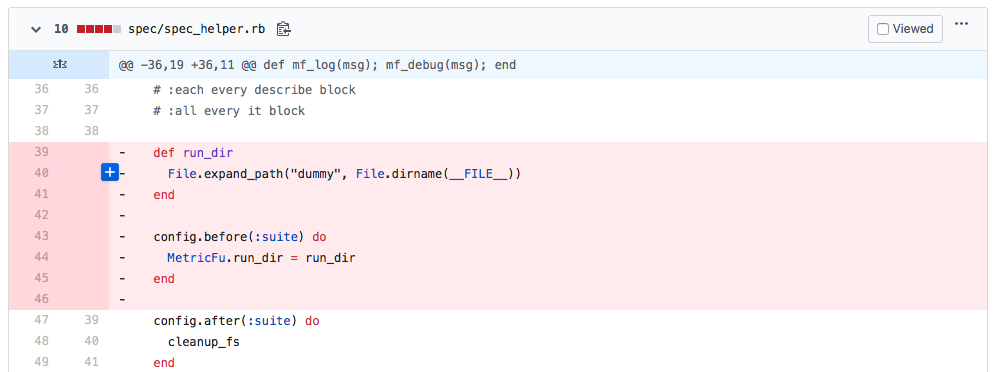

I get rid of the problematic before(:suite) block.

before(:suite) which caused flaky specs

This generates a couple of failures in the test suite, which I decide to solve by calling the MetricFu.with_run_dir method when needed and moving files from spec/dummy to spec/support.

Final Thoughts

These are some tips you can use next time you run into a non-deterministic failure. I know that "leaky state" is not the only root cause of flaky specs, but it's probably the most common root cause.

I can now confidently say that I know a little more than nothing about reek and metric_fu's source code. Here is the pull request with all the changes: https://github.com/metricfu/metric_fu/pull/306

Check out the next section if you want to learn more!

Resources

Others have written about this topic extensively, so if you are interested in knowing more about flaky tests, I recommend you read further:

  • https://building.buildkite.com/5-ways-weve-improved-flakey-test-debugging-4b3cfb9f27c8
  • https://samsaffron.com/archive/2019/05/15/tests-that-sometimes-fail
  • https://www.codewithjason.com/common-causes-flickering-flapping-flaky-tests/
